49 Sample positions, 56 Reagent positions, 120 Reaction cuvettes, 200 tests per hour and Probe anti-collision function.
Powered by Froala Editor
Powered by Froala Editor

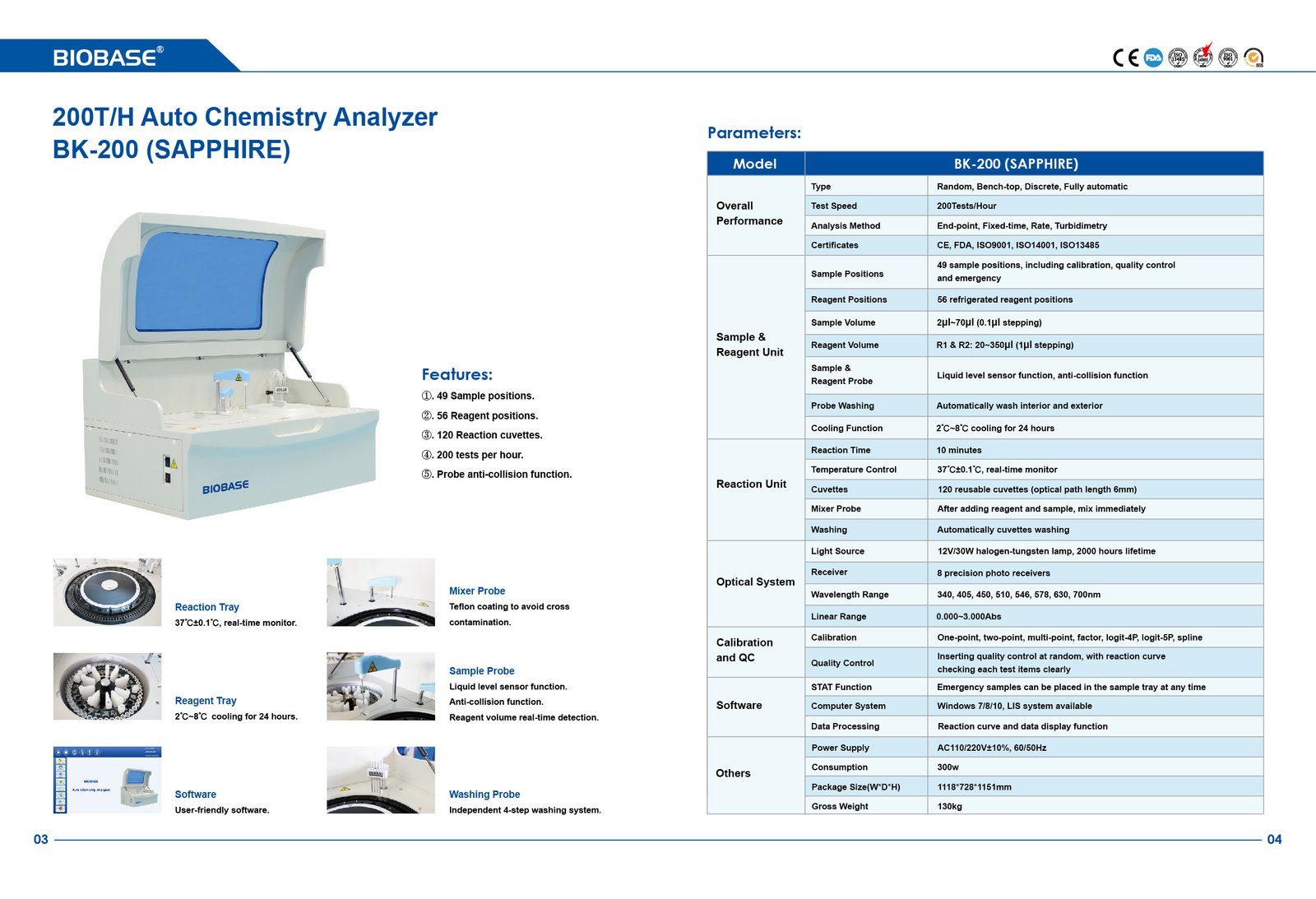

Overall Performance Model BK-200(SAPPHIRE) Type Random, Bench-top, Discrete, Fully automatic Throughput 200Tests/Hour Analysis Method End-point, Fixed-time, Rate, Turbidimetry Certification CE, FDA, ISO9001, ISO14001, ISO13485 Sample & Reagent Unit Sample Positions 49 sample positions, including calibration, quality control and emergency Reagent Positions 56 refrigerated reagent positions Sample Volume 2~70μl (0.1μl stepping) Reagent Volume R1&R2: 20~350μl (1μl stepping) Sample & Reagent Probe Liquid level sensor function, anti-collision function Probe cleaning Automatically wash interior and exterior Reagent tray cooling 2℃~8℃cooling for 24 hours Reaction Unit Reaction Time 10 minutes Temperature Control 37℃±0.1℃, real-time monitor Cuvettes 120 reusable cuvettes (optical path length 6mm) Mixer probe After adding reagent and sample, mix immediately Washing Automatically cuvettes washing Optical System Light Source 12V/30W halogen-tungsten lamp, 2000 hours lifetime Receiver 8 precision photo receivers Wavelength Range 340,405,450,510,546,578,630,700nm Linear Range 0.000~3.000Abs Calibration and QC Calibration One-point, two-point, multi-point, factor, logit-4P, logit-5P, spline Quality Control Inserting quality control at random, with reaction curve checking each test items clearly Software STAT Function Emergency samples can be placed in the sample tray at any time Computer System Windows 7/8/10, LIS system available Data Processing Reaction curve and data display function Others Power Supply AC110/220V±10%, 60/50Hz Consumption 300w Package Size(W*D*H) 1118*728*1151mm Gross Weight 130kg Powered by Froala Editor
Name Unit Quantity Sample cup one 1 Cuvettes Pack(120 units) 1 pack Reagent Probe one 1 Sample Probe one 1 Mixer Probe one 1 Fuse one 1 Halogen lamp one 1 Powered by Froala Editor
